SIMM RAM module 4Mx9
@Blog 22 May 2023

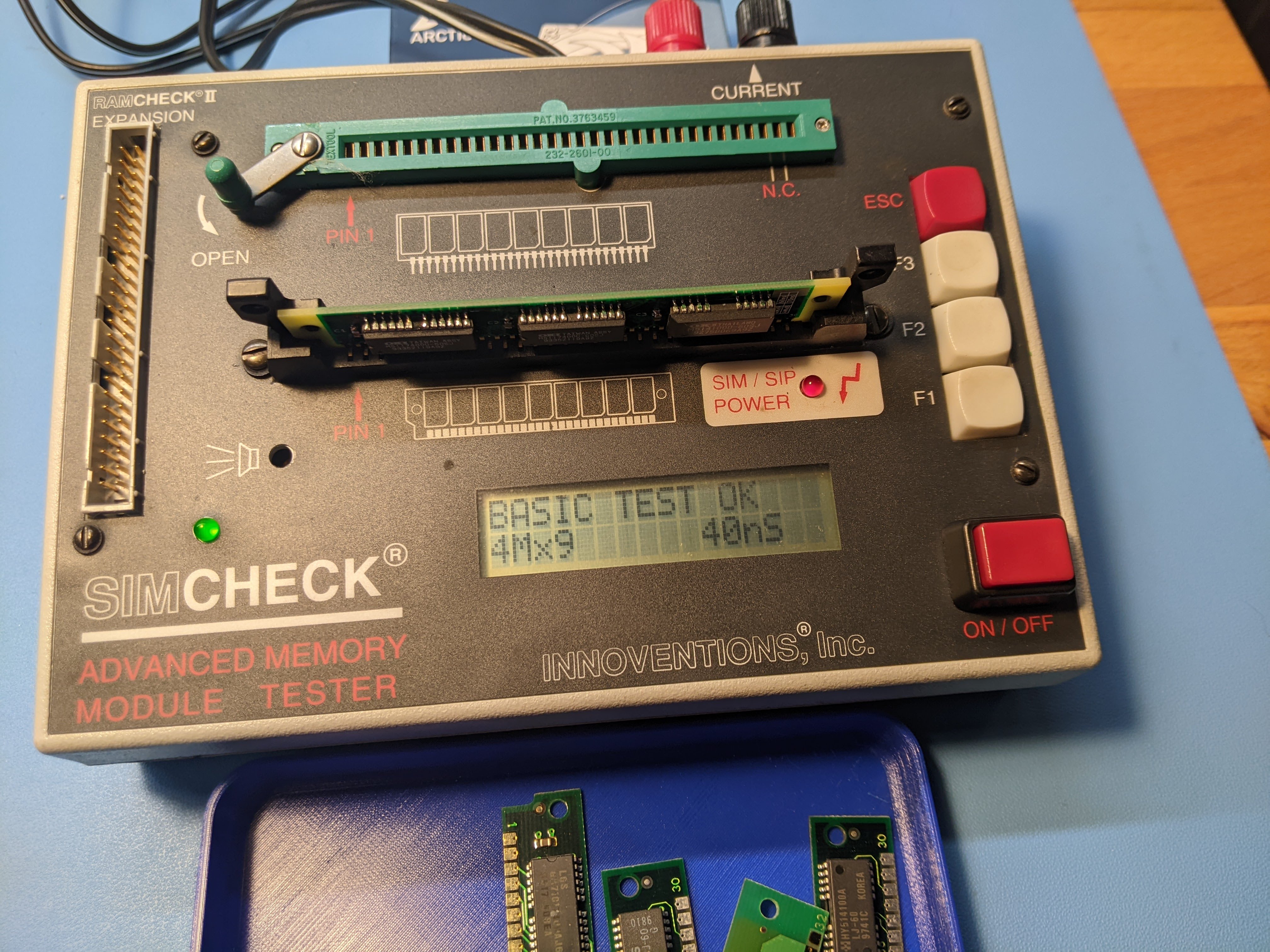

SimmCheck says 40ns!

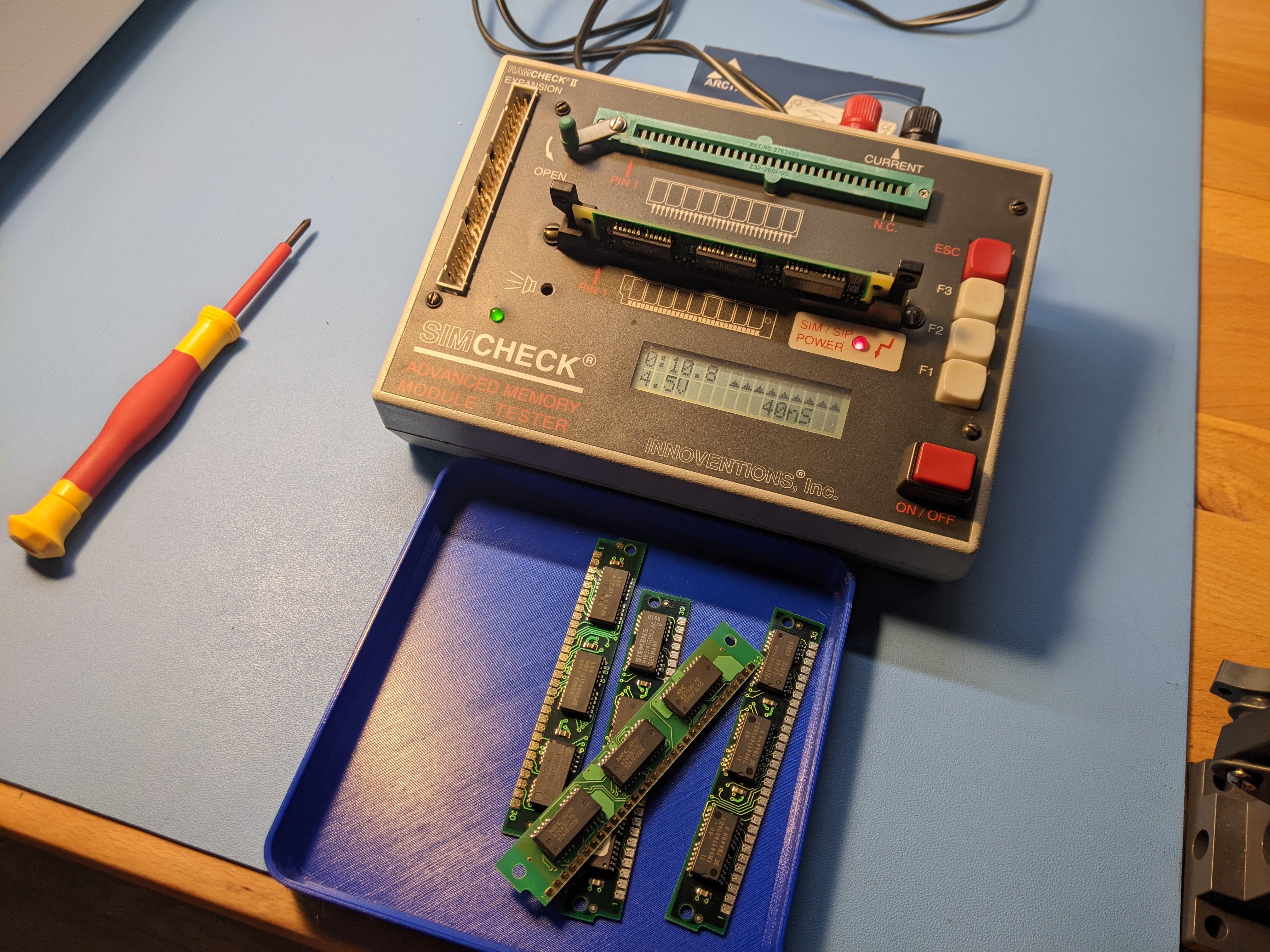

Did I just make the fastest 30pin DRAM SIMM 4Mx9 modules on the market? My Simcheck tester seems to think so. 40ns is an amazing result!
Looks like 4 layers PCB paid it's dividends. @PCBWay thanks supporting this project!
click on pictures to enlarge
