Nixie clock CMOS/TTL – real time, single board

@Blog 02 May 2023

Not a line of code in sight!

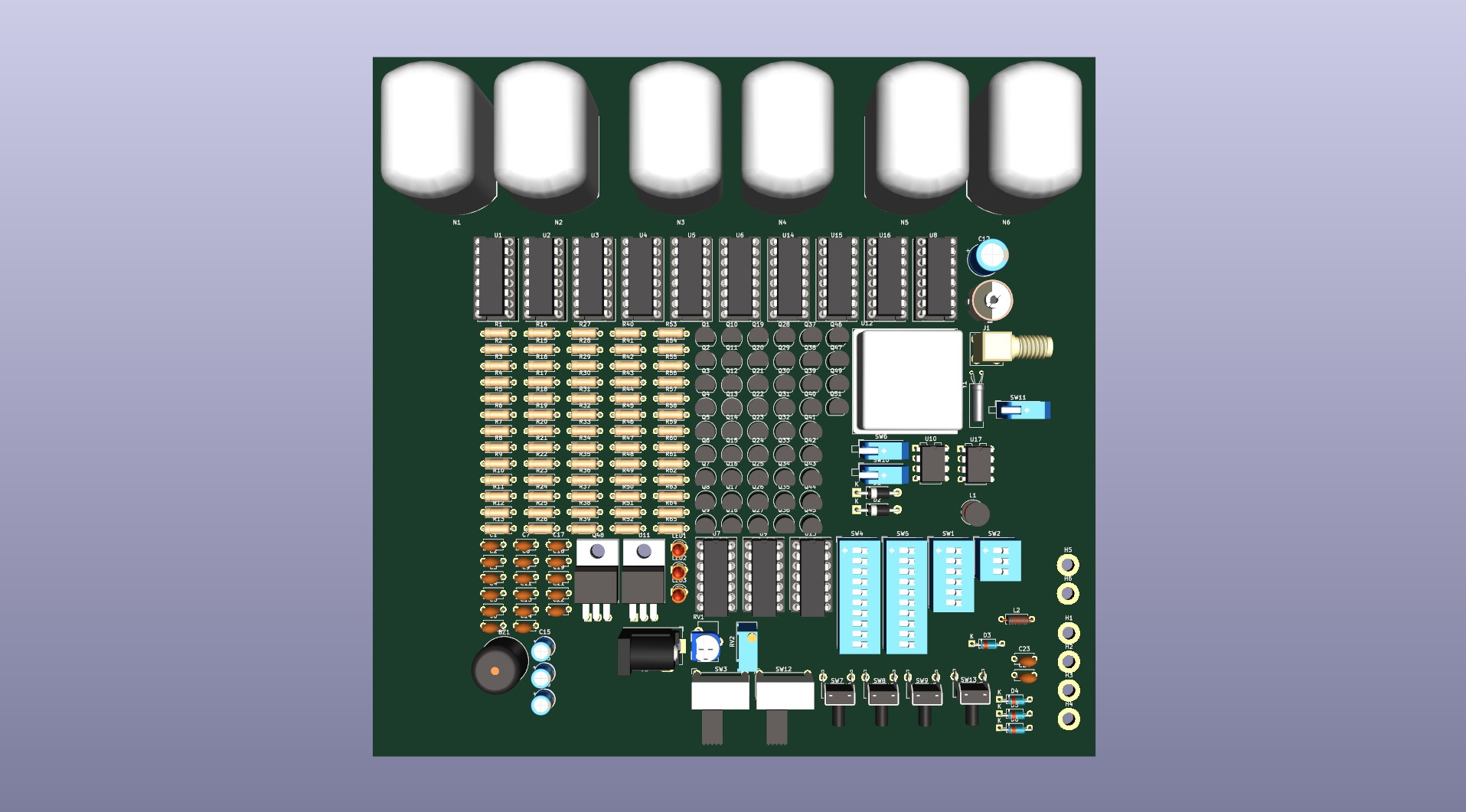

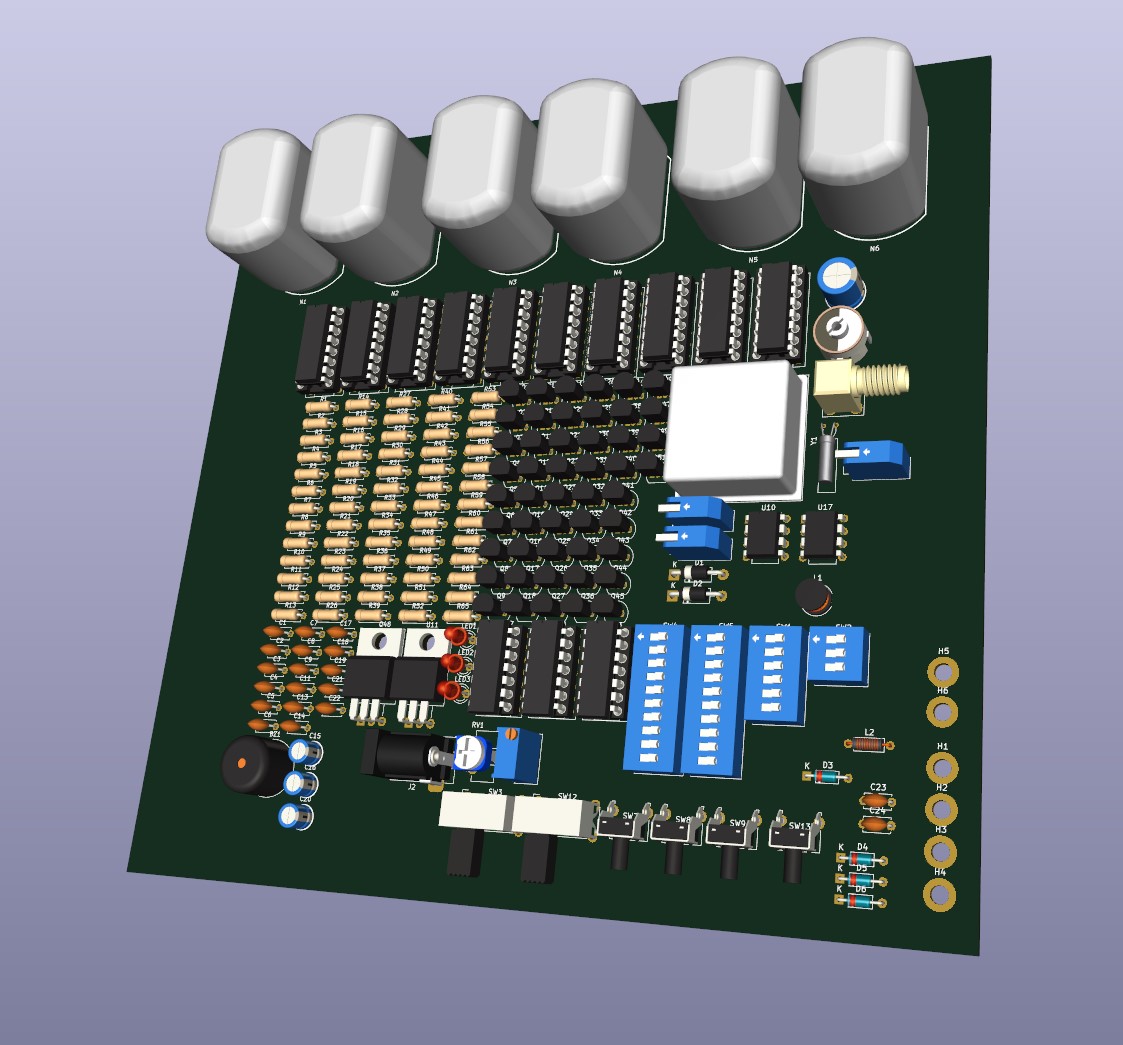

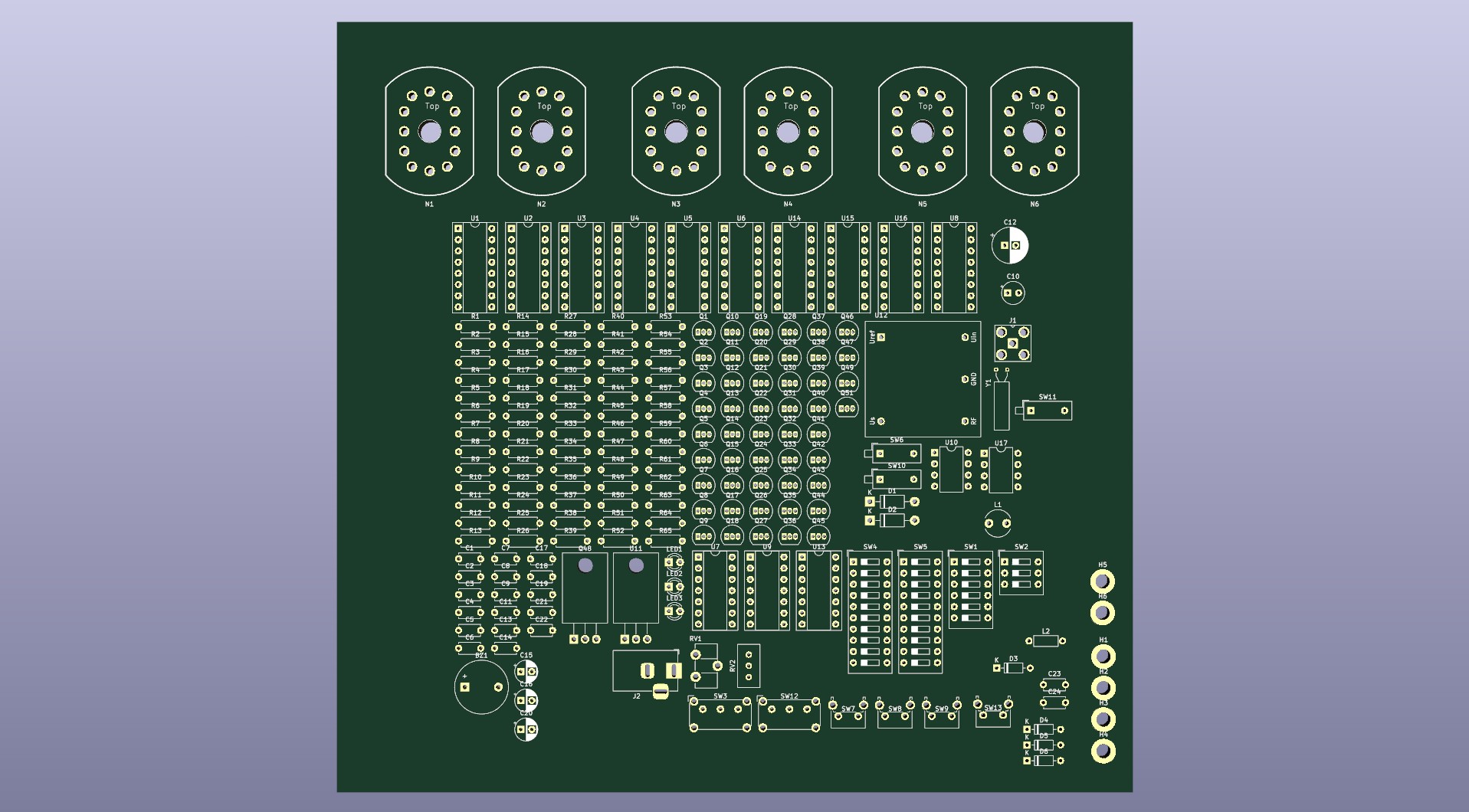

Time has come to design a new improved version of my real time CMOS/TTL Nixe Clock - this time on single PCB which should be a centre piece and/or talking point.
WIP – features are not summarized, components on board are not complete

click on pictures to enlarge
Nixie clock CMOS/TTL – real time, single board
Nixie clock CMOS/TTL – real time, single board
Nixie clock CMOS/TTL – real time, single board

Potentian / planned features:

real time nixie clock CMOS/TTL
embedded HV PSU
set time, hour, minutes, second reset
internal 32768Hz oscillator
embedded 10Mhz OCXO oscillator
module 10Mhz OCXO oscillator
external 10MHz input sine/square (from Atomic clock: Rubidium Frequency standard)
Alarm Loud/silent + control output
Nixie Dimming
Nixie off + 20s temp on button
battery backup
hourly chime
optional PIR sensor
reset upon start
This is open source project, gerbers and schematic will be published eventually
